You can modify the parameters in BarCode.conf file to adjust the position of the printed barcode and change the font name of the human readable text, all parameters are defined line by line.

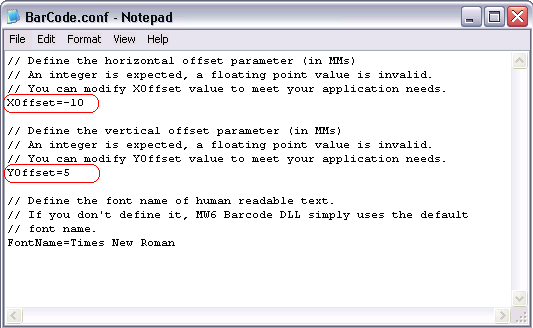

The horizontal offset parameter ("XOffset") and the vertical offset parameter ("YOffset") are defined in millimeters (MMs), a positive offset indicates that the printed barcode is positioned to the right or bottom of the original point, a negative offset indicates that the printed barcode is positioned to the left or top of the original point.

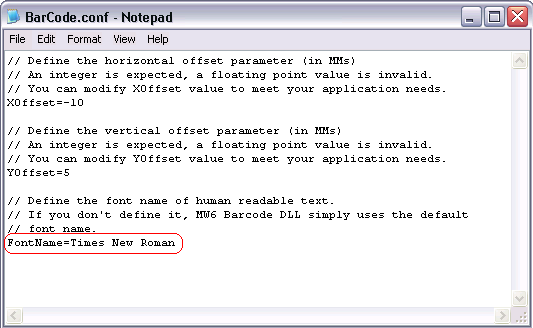

The font name parameter ("FontName") is used to define the font name of the human readable text.
